galata

Flight dynamics, control-law design and simulation — reproducibly, from a file you can read, with every number traceable to the routine that produced it.

galata is an offline engineering workbench. A YAML study can trim and linearise a local aircraft model, design continuous LQR state feedback, analyse the closed loop, simulate linear and nonlinear responses with explicit actuator limits, and write Markdown, HTML and CSV reports with a run manifest.

The analysis includes labelled aircraft modes, frequency response, gain, phase, delay and disk margins, and Hamiltonian H-infinity norm brackets for stable systems. Published-reference comparisons and numerical checks are recorded separately in the verification report.

It is usable for supervised, offline aviation and defence engineering studies within these limits. It is not a qualified tool, an onboard controller, or a validated model of an arbitrary aircraft. The operating guide explains the supported workflow and the checks a result still needs.

An experimental continuous block-model profile now supports headless compilation and simulation of scalar feedback diagrams. The working example records model identity and scoped run evidence. The M2 preview increment adds immutable project revisions, an isolated CLI worker and an optional native macOS editor and result viewer with a Dim theme, keyboard-accessible block/sample tables and saved-revision review and restore. A typed linear-system/LQR adapter imports the existing NT-33A study with its original source evidence. Full M2 acceptance and desktop toolkit selection remain open; delivery continues macOS first, then Linux.

C++20 core, strict SI units, deterministic by policy, Apache-2.0.

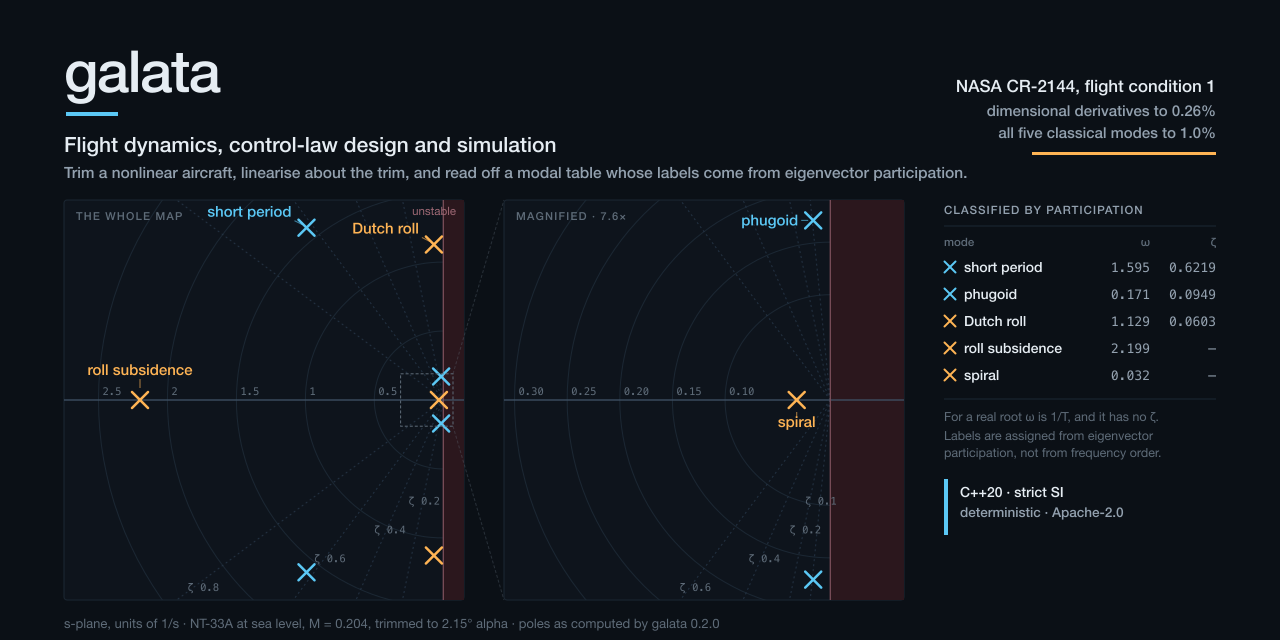

_{Drawn from a run, not by hand: tools/social/ emits the poles, CI diffs them, and the labels are the classifier's own output.}

The claim, and how to check it in one command

Everything below is produced by tests/validation/ and regenerated into docs/VERIFICATION.md, which CI diffs. The input is a set of non-dimensional derivatives and some geometry — there is no matrix anywhere in it.

The aircraft. NT-33A, a variable-stability T-33. The condition. Flight condition 1 of eight, Table II-2: sea level, M = 0.204, power approach, bare airframe. The reference. Robert K. Heffley and Wayne F. Jewell, Aircraft Handling Qualities Data, NASA CR-2144, Systems Technology Inc., December 1972. NTRS 19730003312, distribution unlimited.

Dimensional derivatives, against Table II-7

Seven numbers the report computed from the same non-dimensional set by a different route.

The source prints its inputs and outputs to three significant figures, so each value carries up to about 0.5% of its own rounding and several combine in every one of these. The gate is 0.5%. The worst observed is 0.26%.

All five classical modes, against Tables II-4 and II-8

The report prints no headings saying "short period" or "Dutch roll" — the modal characteristics are the factored denominators of its transfer-function tables, and Appendix A prints this exact condition's lateral denominator as its worked example. galata's labels come from eigenvector participation and are checked against that identification.

Reproduce both tables

git clone https://github.com/celikgo/galata.git
cd galata
export VCPKG_ROOT=/path/to/vcpkg          # manifest mode fetches the rest

cmake --preset dev
cmake --build --preset dev

ctest --preset dev -L validation          # fails if any deviation above exceeds its gate
./build/dev/src/cli/galata run examples/nt33a-trim-and-linearise/study.yaml --output-dir build/trim-study

The tier carries the ctest label validation, so -L is the flag.

Or look at the whole case on one page

The NT-33A at flight condition 1 — trim point, the labelled modal table with its participation factors, the pole map, the Bode plot with every crossover marked, and a Nyquist against the disk the loop must avoid. One self-contained page, no JavaScript and no network requests, with a light variant that is also what it prints as. The committed copy is docs/reports/nt33a-fc1.html, and it opens from disk.

Every number and every mark on it comes from a run: tools/report/ emits the run record, scripts/gen-report-page.py draws the page from it, and CI compares the record numerically against the code and the page byte for byte against the record. The page names the routine that produced each figure.

What does NOT reproduce

One published quantity does not, and it stays published rather than being quietly dropped: a state matrix assembled by hand from the report's dimensional derivatives gives a phugoid damping ratio 2.04% below the published value, while the full chain above reproduces it to 0.05%. The cause is now localised to a single matrix entry — a gravity term that the substituted-ẇ form of the report's Appendix C manufactures and that cannot physically exist. The investigation, including what was ruled out, is in docs/notes/phugoid-damping.md; a labelled regression lock holds the gap at its measured size meanwhile.

Status: 0.3.0 — bounded offline workbench

For the macOS desktop candidate, see the packaging and verification guide. The candidate is locally sealed and checked; Developer ID signing, notarization and full desktop acceptance remain open.

The trim, linearisation and frequency-analysis workflow now connects to control synthesis and time-domain simulation. This is a usable CLI and C++ library release with a deliberately limited model and controller scope. It does not complete the broader desktop, hardware or v1.0 plans in the roadmap.

The table above is maintained by hand and checked in review. The capability table below is not: it is generated from the registry the CLI dispatches through, by scripts/gen-status-table.sh, and CI fails if the committed copy disagrees. Run galata capabilities to get the same list from your own build.

Capabilities in this build

implemented and validated means the output has been compared against a published reference; see docs/VERIFICATION.md. implemented, unvalidated means it works and is tested, but no published reference has been compared against.

Scope and limitations

• No qualification or airworthiness claim. The repository provides no tool qualification package or approved certification evidence. Using a result in an assurance process requires application-specific review and independently established evidence.
• Local aircraft dynamics. The derivative model has no stall, Mach schedule, engine map, structural flexibility or validated full flight envelope. The nonlinear driver stops outside its advisory angle-of-attack/Mach guards; staying inside them does not establish model validity.
• Continuous control studies. LQR assumes exact state feedback. PID accepts supplied gains; it does not tune them. Sensors, sampled control, estimator design and flight-code generation are outside this release.
• Bounded desktop preview. The optional macOS editor uses the synthetic continuous scalar profile. Aircraft block adaptation, a supported installer, complete accessibility acceptance, 3-D views and hardware links remain open.

The operating guide distinguishes numerical convergence, published-reference agreement and aircraft-specific validation.

Who it is for

Flight-control and GNC engineers, controls researchers, students and autopilot developers conducting supervised offline studies. Aviation or defence use is bounded by the same model, numerical and assurance limits; an industry label does not extend the evidence supplied with the tool.

Quickstart

Build the library and CLI, run the tests, then execute the complete local control-design study:

git clone https://github.com/celikgo/galata.git
cd galata

# vcpkg in manifest mode fetches Eigen, yaml-cpp and GoogleTest.
export VCPKG_ROOT=/path/to/vcpkg

cmake --preset dev
cmake --build --preset dev
ctest --preset dev

# Trim, design, analyse, simulate, and write reports into a separate directory.
./build/dev/src/cli/galata run examples/nt33a-control-design/study.yaml --output-dir build/control-study

The output includes control-design Markdown and HTML reports, linear and nonlinear trajectory CSV files, and a content-addressed run manifest. Existing reports require an explicit --overwrite. The example's controller costs and actuator limits are illustrative inputs, not NT-33A hardware specifications. See the example, study-file contract and operating guide for interpreting and repeating the run.

galata capabilities lists what your build can do and how far each capability has been checked.

To try the experimental saved-project workflow:

./build/dev/src/cli/galata project create build/feedback.galata
./build/dev/src/cli/galata project inspect build/feedback.galata
./build/dev/src/cli/galata project run build/feedback.galata

Import the existing local linear aircraft/controller study into a new project:

./build/dev/src/cli/galata project import-linear build/nt33a.galata examples/nt33a-graph-design/study.yaml
./build/dev/src/cli/galata project run build/nt33a.galata

The project guide documents draft saving and retained run states. The M2 implementation guide explains enabling and opening the optional native macOS app. Its development bundle has no signing, notarization or clean-machine installation acceptance; hosted verification of this increment remains pending.

Requires CMake 3.25+, Python 3.9+, Ninja, a C++20 compiler and a vcpkg checkout. Supported and tested on Linux (GCC and Clang) and macOS (AppleClang) — see .github/workflows/ci.yml for the exact matrix.

Windows is not supported. Support was withdrawn rather than left nominal. The installed-package consumer check failed there in a way that was never root caused (issue 12), and the portability work needed to keep a fourth platform compiling was being paid for no user. Nothing here deliberately rejects Windows; there is simply no job that builds or tests it, so any statement that it works would be an untested claim, which rule 2 below forbids. The windows-x86_64 archives published under v0.1.0 and v0.2.0 stay where they are, because removing them would invalidate the SHA256SUMS.txt those releases publish for every platform; they are historical and unmaintained, and no future release ships one.

Further development

The roadmap separates this release from future work: broader validated aircraft models, sampled controllers and estimators, handling qualities, gain scheduling, hardware integration, a supported aircraft-modeling desktop and a stable plugin interface. The native M2 preview covers only the bounded scalar and imported linear aircraft/controller workflows; the broader outcomes remain plans.

Engineering rules

These are gates, not aspirations. A change that violates one does not merge.

1. CI exists before the feature. There is no commit that adds source without adding to the CI graph.
2. Nothing is documented before it works. A capability that is a stub says so in its own output and in the docs. A documentation claim that CI does not verify is a bug, and the Status table above is the contract.
3. One source of version truth — the VERSION file, checked by scripts/check-version-consistency.sh.
4. Every URL in every document resolves, checked by scripts/check-doc-links.sh.
5. Strict SI in the numerical core — metres, seconds, kilograms, newtons, radians, kelvin, pascals. Degrees, feet and knots exist only at the UI and file-format boundary, converted by one documented set of functions and enforced by scripts/check-si-boundary.sh. See ADR-0003.
6. Determinism is tested, and its limits are published. Same platform: bit identical. Across platforms: agreement to a published bound, because platform math libraries do not agree on sin in the last bits and claiming otherwise would be false. See ADR-0004.
7. Every physics and numerics source file cites its literature source and states the model's validity envelope and the direction and magnitude of its known error.
8. Reference values in tests come from published sources, never from the implementation. See docs/TESTING.md.
9. No number reaches the user without provenance — which capability produced it, from what inputs, at what version.

Conventions

Getting these wrong is how flight software fails silently, so they are written down once, in full, in ADR-0002:

• NED navigation frame, FRD body frame.
• Attitude as a unit quaternion, Hamilton convention, scalar-first [w, x, y, z], representing the body-to-NED rotation. Euler angles (3-2-1) are derived output, never integrated state.
• Thirteen-component state vector [p_n p_e p_d, u v w, q_w q_x q_y q_z, p q r] in that order — the order it is integrated, fingerprinted and serialised in. It is not the row order of a produced state-space matrix: linearisation works in twelve Euler coordinates and reports a reduced set, and every LinearSystem carries its own state names.
• Full 6-DOF equations of motion with a general inertia tensor — I_xz is not assumed zero.

Documentation

Everything below is also readable at celikgo.github.io/galata, which is this repository's own Markdown rendered — including the generated V&V report. It adds no content that is not in the repository.

• docs/CHARTER.md — the engineering rules, in full
• docs/adr/ — architecture decision records
• docs/VERIFICATION.md — the V&V report: what has been checked against a published document, the agreement measured, and what is explicitly unvalidated. Generated by CI from the code, not written by hand.
• docs/TESTING.md — the test tiers and what each proves
• docs/WORKBENCH.md — running, reviewing and embedding an offline design study
• docs/STUDY_FILES.md — accepted YAML, safe output paths and run-record contents
• docs/PROJECT_FILES.md — experimental project revisions, draft saving and worker recovery
• M2 implementation — bounded project/worker increment and native macOS feasibility preview
• docs/ROADMAP.md — milestones and their contents
• docs/rfc/ — design records with implementation status; RFC-0001 covers control synthesis
• The NT-33A flight-condition report — the trim point, the modal table, the pole map and the margins for the reference case, drawn from a run and diffed by CI. Committed at docs/reports/nt33a-fc1.html.
• CLAUDE.md and .claude/skills/ — the build, the gates, and the verification methodology written down as skills
• CONTRIBUTING.md — building, the pre-push gates, what review asks
• SECURITY.md — the threat model this tool actually has, and how to report a vulnerability privately
• CODE_OF_CONDUCT.md — Contributor Covenant 2.1

Checking the validation claim yourself

The agreement with NASA CR-2144 quoted at the top of this file is not a sentence somebody typed. It is gated:

• the reference values live in tests/validation/reference/nt33a_fc1.csv, which carries the report number, its authors, its rights position, the SHA-256 of the scan the numbers were read from, and the method by which they were transcribed;
• tests/validation/test_nt33a_trim_linearize.cpp runs the whole chain from the non-dimensional derivative set and fails if any dimensional derivative deviates by more than 0.5%;
• tests/validation/test_nt33a_modes.cpp does the same for the five classical modes;
• docs/VERIFICATION.md is regenerated from those runs by scripts/gen-verification.sh, and CI fails if the committed copy has drifted, so the report cannot describe a measurement the code no longer produces.

ctest --preset dev -L validation      # the whole validation tier

The tier carries the ctest label validation, so -L is the flag; the tests are named after what they check, not after the tier.

Licence

Apache-2.0. See LICENSE and NOTICE.

The name is the Galata Tower in Istanbul, from which — by an account first printed in Evliya Çelebi's Seyahatnâme — Hezârfen Ahmed Çelebi is said to have glided across the Bosphorus in the 1630s. The story is not evidence and this project does not treat it as such; it is just where the name comes from.
